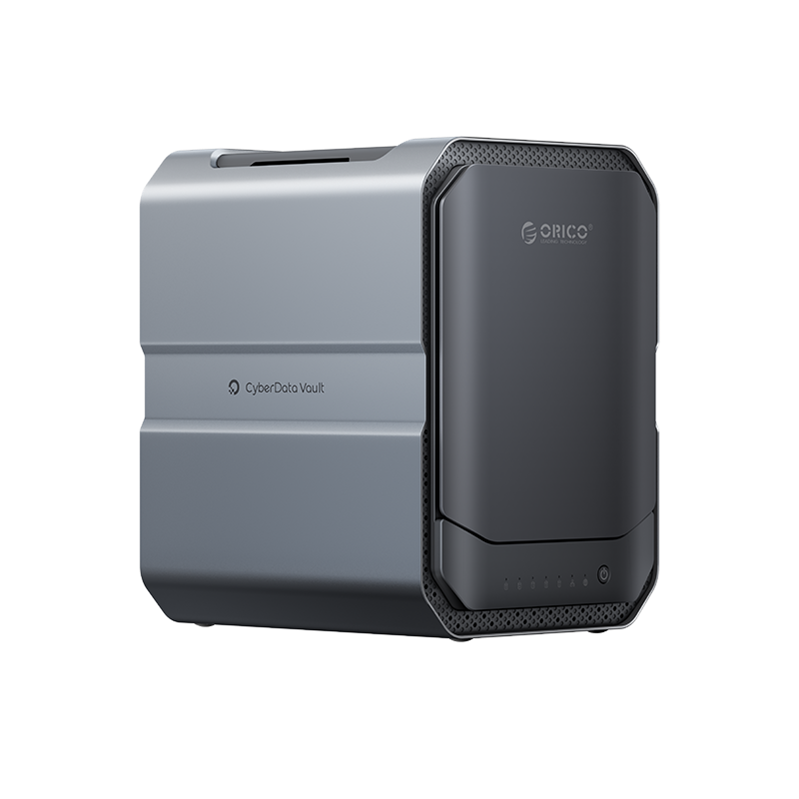

    CyberData Vault 11Bay AI NAS with Hybrid Storage - Now Live on Kickstarter

    • Product Model
      ORICO-CF56-Pro
    • CPU
      Intel Core i5-1240P (4.4GHz, 12 Cores, 16 Threads, 12MB Intel® Smart Cache, TDP 28W, TDP Down 20W)
    • RAM Memory
      16GB DDR5 , Expandable up to 96GB
    • Flash Memory (System Disk)
      128GB SSD
    • Max. Storage
      168TB (5-bay for 2.5"/3.5"SATA HDD/SSD, 6 M.2 SSD slots)
    • Support Drive Capacity
      24TB SATA HDD Per Bay, 8TB M.2 SSD Per Bay
    • Internal Interface
      SATA 3.0 6Gbps x5, M.2 M-Key NVMe 2280 x6, DDR5 SO-DIMM x2
    • External Interface
      2* 40Gbps USB4(Support Thunderbolt 4/3), 1* USB3.2 Gen2 USB-A (10Gbps), 1* USB3.2 Gen2 USB-C (10Gbps), 2* USB2.0 (480Mb/s)
    • LAN Port
      10GbE*2 (Aggregated up to 20GbE)
    • HDMI
      1* HDMI 2.1 (8K)
    • DP
      1* DP 1.4a (8K)
    • Package Included
      1* Power Addapter, 2* 10GbE Network Cable, 1* Screwdriver, 2* Screw Pack, 1* User Manual
    • Dimension
      240(L)*201(W)*280(H)mm
